Серия модульных маршрутизаторов Cisco 2600 Series |
|
|
Серия Cisco 2600 - серия модульных маршрутизаторов для малых и средних офисов, включающих в себя возможность передачи голоса и факса через сети TCP/IP. Кроме того, предлагаемый набор модулей позволяет использовать устройства Cisco 2600 в качестве серверов доступа и межсетевых экранов. Модели этой серии с портами Fast Ethernet можно использовать для обеспечения маршрутизации между VLAN в локальных сетях.
Возможность использования в Cisco 2600 интерфейсных модулей от Cisco 1600, 1700, 3600 серий, дает большую гибкость в применении этого оборудования.
Серия маршрутизаторов Cisco 2600:
| CISCO2610XM | 10/100 Ethernet Router w/ Cisco IOS IP |
| CISCO2611XM | 10/100 Ethernet Router w/ Cisco IOS IP |
| CISCO2620XM | Mid Performance 10/100 Ethernet Router with Cisco IOS IP |
| CISCO2621XM | Mid Performance Dual 10/100 Ethernet Router w/Cisco IOS IP |
| CISCO2650XM | High Performance 10/100 Modular Router w/Cisco IOS IP |
| CISCO2651XM | High Performance Dual 10/100 Modular Rout with Cisco IOS IP |
| CISCO2651XM-V | CISCO2651XM, AIM-VOICE-30, IOS IP Voice, 128D/32F |
| CISCO2651XM-V-SR | CISCO2651XM,FL-SRST-MEDIUM,AIM-VOICE-30,IP Voice,128D/32F |
| CISCO2691 | High Performance 10/100 Dual Eth Router w/3 WIC Slots,1 NM |
Каждая модель имеет ДВА WAN Interface Card (WIC) слота, ОДИН Network Module (NM) слот и внутренний Advanced Integration Module (AIM) слот.

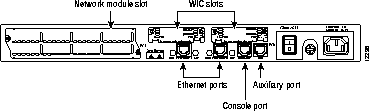

Ниже на рисунке задняя панель Cisco2611:
В маршрутизаторах установлены следующие процессоры:
Модули ЛВС.
| NM-1E= | 1-Port Ethernet Network Module |
| NM-4E= | 4-Port Ethernet Network Module |
| NM-1ATM-25= | Single port ATM 25 Network Module for 3600 series |
WIC(WAN Interface Card) - модули.
| WIC-1T= | 1-Port Serial WAN Interface Card |
| WIC-1DSU-56K4= | 1-Port 4-Wire 56Kbps DSU/CSU WAN Interface Card |
| WIC-1B-S/T= | 1-Port ISDN WAN Interface Card(dial and leased line) |
| WIC-2T= | 2-Port Serial WAN Interface Card |
| WIC-2A/S= | 2-Port Async/Sync Serial WAN Interface Card |
VIC/Fax(Voice/Fax Interface Card) - модули.
| VIC-2FXS= | Two-port Voice Interface Card - FXS-Spare |
| VIC-2FXO= | Two-port Voice Interface Card - FXO-Spare |
| VIC-2E/M= | Two-port Voice Interface Card - E&M-Spare |
| VIC-2FXO-EU= | Two-port Voice Interface Card - FXO (for Europe) |
| VIC-2BRI-S/T-TE= | Two-port Voice Interface Card - BRI (Terminal) |
| NM-1V= | One-Slot Voice/fax Network Module-Spare |
| NM-2V= | Two-Slot Voice/fax Network Module-Spare |
| PVDM-12= | 12-Channel Packet Voice/Fax DSP Module |
| VWIC-1MFT-E1= | 1-Port RJ-48 Multiflex Trunk - E1 |
| VWIC-1MFT-T1= | 1-Port RJ-48 Multiflex Trunk - T1 |
| VWIC-2MFT-T1= | 2-Port RJ-48 Multiflex Trunk - T1 |
| VWIC-2MFT-T1-DI= | 2-Port RJ-48 Multiflex Trunk - T1 With Drop and Insert |
| VWIC-2MFT-E1= | 2-Port RJ-48 Multiflex Trunk - E1 |
| VWIC-2MFT-E1-DI= | 2-Port RJ-48 Multiflex Trunk - E1 With Drop and Insert |
NM(Network Module) - модули.
| NM-HDV-1T1-24= | Single-Port 24 Channel T1 Voice/Fax Network Module |
| NM-HDV-1T1-24E= | Single-Port 24 Enhanced Channel T1 Voice/Fax Network Module |
| NM-HDV-2T1-48= | Dual-Port 48 Channel T1 Voice/Fax Network Module |
| NM-HDV= | High Density Voice/Fax Network Module (Single VIC Slot) |
| NM-HDV-1E1-30= | Single-Port 30 Channel E1 Voice/Fax Network Module |
| NM-HDV-1E1-30E= | Single-Port 30 Enhanced Channel E1 Voice/Fax Network Module |
| NM-HDV-2E1-60= | Dual-Port 60 Channel E1 Voice/Fax Network Module |
| NM-1V= | One-Slot Voice/fax Network Module-Spare |
| NM-2V= | Two-Slot Voice/fax Network Module-Spare |
| NM-16A= | 16 port Asynchronous Module |
| NM-16AM= | 16 Port Analog Modem Network Module, Spare |
| NM-32A= | 32 port Asynchronous Module |
| NM-4A/S= | 4-Port Async/Sync Serial Network Module |
| NM-8A/S= | 8-Port Async/Sync Serial Network Module |
| NM-4B-S/T= | 4-Port ISDN-BRI Network Module |
| NM-8AM= | 8 Port Analog Modem Network Module, Spare |
| NM-8B-S/T= | 8-Port ISDN-BRI Network Module |
| NM-2W= | 2 WAN Card Slot Network Module(no LAN) |
| NM-1CE1B= | 1-Port Channelized E1/ISDN-PRI Balanced Network Module |
| NM-1CE1U= | 1-Port Channelized E1/ISDN-PRI Unbalanced Network Module |
| NM-2CE1B= | 2-Port Channelized E1/ISDN-PRI Balanced Network Module |
| NM-2CE1U= | 2-Port Channelized E1/ISDN-PRI Unbalanced Network Module |
AIM(Advanced Integration Module) - модули.
| AIM-COMPR2= | 8 Mbps Compression Adv. Integration Module for Cisco 2600 |
| AIM-VPN/BP | VPN AIM encryption accelerator for the 2600 |
Варианты программного обеспечения - Cisco IOS:
| CD26-C-12.0.7= | Cisco 2600 IP Feature Pack |
| CD26-CH-12.0.7= | Cisco 2600 IP/FW Feature Pack |
| CD26-CP-12.0.7= | Cisco 2600 IP Plus Feature Pack |
| CD26-CHL-12.0.7= | Cisco 2600 IP/FW Plus IPSEC 56 Feature Pack |
| CD26-CK2-12.0.7= | Cisco 2600 IP Plus IPSEC 3DES Feature Pack |
| CD26-CHK2-12.0.7= | Cisco 2600 IP/FW Plus IPSEC 3DES Feature Pack |
| CD26-CL-12.0.7= | Cisco 2600 IP Plus IPSEC 56 Feature Pack |
| CD26-B-12.0.7= | Cisco 2600 IP/IPX/AppleTalk/DECnet Feature Pack |
| CD26-BP-12.0.7= | Cisco 2600 IP/IPX/AppleTalk/DECnet Plus Feature Pack |
| CD26-BHP-12.0.7= | Cisco 2600 IP/IPX/AppleTalk/DECnet/FW Plus Feature Pack |
| CD26-AP-12.0.7= | Cisco 2600 Enterprise Plus Feature Pack |
| CD26-AL-12.0.7= | Cisco 2600 Enterprise Plus IPSEC 56 Feature Pack |
| CD26-AHK2-12.0.7= | Cisco 2600 Enterprise/FW Plus IPSEC 3DES Feature Pack |
| CD26-AK2-12.0.7= | Cisco 2600 Enterprise Plus IPSEC 3DES Feature Pack |
| CD26-AHL-12.0.7= | Cisco 2600 Enterprise/FW Plus IPSEC 56 Feature Pack |
| CD26-E-12.0.7= | Cisco 2600 Remote Access Server Feature Pack |
| CD265-AP-12.1.3= | Cisco 2600 Enterprise Plus Feature Pack |
| CD265-B-12.1.3= | Cisco 2600 IP/IPX/AT/DEC Feature Pack |
| CD265-BP-12.1.3= | Cisco 2600 IP/IPX/AT/DEC Plus Feature Pack |
| CD265-CH-12.1.3= | Cisco 2600 IP/FW/IDS Feature Pack |
| CD265-CP-12.1.3= | Cisco 2600 IP Plus Feature Pack |
|
|
