Серия маршрутизаторов Cisco 3600 |
Серия Cisco 3600 разработана для поддержки растущего числа удаленных офисов и подразделений, которым необходим доступ в корпоративную сеть или сеть Интернет. Эта серия серверов доступа предлагает беспрецедентный уровень поддержки различных технологий удаленного доступа, включая передачу голоса и факсов через сети TCP/IP.
Серия Cisco 3600 состоит из нескольких моделей, отличающихся количеством свободных слотов расширения, производительностью процессора и наличием встроенных портов Ethernet.
Модели Cisco 3600.
| Модель | Ethernet порты | NM-слоты | AIM-слоты | Процессор |
| Cisco3620 |
нет |
2 |
нет |
80 MHz IDT R4700 RISC |
| Cisco3640 |
нет |
4 |
нет |
100 MHz IDT R4700 RISC |
| Cisco3661 |
один 10/100 |
6 | 2 | 225 MHz RISC QED RM5271 |
| Cisco3662 |
два 10/100 |
6 | 2 | 225 MHz RISC QED RM5271 |
В Cisco3600 серии возможно применение WAN Interface Cards и Voice Interface Cards таких же, как в Cisco2600 серии, а так же WAN Interface Cards таких же, как в Cisco1600 и Cisco1700 серий .

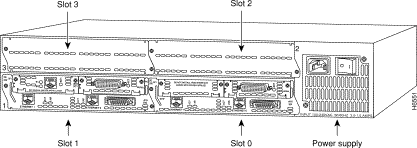

Задняя панель Cisco 3640:

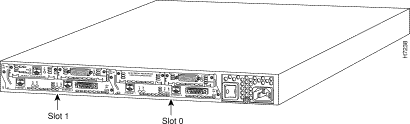

Задняя панель Cisco 3620:
| Cisco 3660 Series Data Compression AIM for the 3660 | |
| AIM-COMPR4 | Data Compression AIM for the 3660 |
| AIM-VPN/HP | VPN AIM encryption accelerator for the 3660 |
| AIM-VPN/HP= | DES/3DES VPN Encryption AIM for 3660-High Perform. |
| Cisco 3600 Series Network Modules | |
| NM-1E | 1-Port Ethernet Network Module |
| NM-1FE-FX | 1-Port Fast Ethernet Network Module, FX Only |
| NM-1FE-TX | 1-Port Fast Ethernet Network Module (TX Only) |
| NM-1FE2W | 1 10/100 Ethernet 2 WAN Card Slot Network Module |
| NM-1E2W | 1 Ethernet 2 WAN Card Slot Network Module |
| NM-1E1R2W | 1 Ethernet 1 Token Ring 2 WAN Card Slot Network Module |
| NM-1FE1R2W | 1 10/100 Ethernet 1 4/16 Token-Ring 2 WAN Card Slot NM |
| NM-1HSSI | Single port HSSI network module for 3660, 3640 and 3620 |
| NM-1A-T3 | 1-Port DS3 ATM Network Module |
| NM-1A-E3 | 1-Port E3 ATM Network Module |
| NM-1A-OC3MM-1V | 1-port MultimodeOC-3 ATM CES network module |
| NM-1A-OC3SMI-1V | 1-port Singlemode Intermediate Reach OC-3 ATM CES NM |
| NM-1A-OC3SML-1V | 1-port Sinlgemode Long Reach OC-3 ATM CES NM |
| NM-1A-OC3MM | Single port ATM OC-3 Multimode network module for 3600 |
| NM-1A-OC3SMI | Single port ATM OC-3 Singlemode Intermediate Reach NM |
| NM-1A-OC3SML | Single port ATM OC-3 Singlemode Long Reach Network Module |
| NM-1V | One-slot Voice/fax Network Module |
| NM-2V | Two-Slot Voice/fax Network Module |
| NM-HDV-1E1-12 | Single-Port 12 Channel E1 Voice/Fax Network Module |
| NM-HDV-1E1-30 | Single-Port 30 Channel E1 Voice/Fax Network Module |
| NM-HDV-1E1-30E | Single-Port 30 Enhanced Channel E1 Voice/Fax Network Module |
| NM-HDV-2E1-60 | Dual-Port 60 Channel E1 Voice/Fax Network Module |
| NM-HDV-1T1-12 | Single-Port 12 Channel T1 Voice/Fax Network Module |
| NM-HDV-1T1-24 | Single-Port 24 Channel T1 Voice/Fax Network Module |
| NM-HDV-1T1-24E | Single-Port 24 Enhanced Channel T1 Voice/Fax Network Module |
| NM-HDV-2T1-48 | Dual-Port 48 Channel T1 Voice/Fax Network Module |
| NM-2W | 2 WAN Card Slot Network Module(no LAN) |
| NM-2E2W | 2 Ethernet 2 WAN Card Slot Network Module |
| NM-2FE2W | 2 10/100 Ethernet 2 WAN Card Slot Network Module |
| NM-4A/S | 4-Port Async/Sync Serial Network Module |
| NM-4B-S/T | 4-Port ISDN-BRI Network Module |
| NM-4B-U | 4-Port ISDN-BRI with NT-1 Network Module |
| NM-8A/S | 8-Port Async/Sync Serial Network Module |
| NM-8AM | 8Port Analog Modem Network Module |
| NM-8B-S/T | 8-Port ISDN-BRI Network Module |
| NM-8B-U | 8-Port ISDN-BRI with NT-1 Network Module |
| NM-1CT1 | 1-Port Channelized T1/ISDN-PRI Network Module |
| NM-1CT1-CSU | 1-Port Channelized T1/ISDN-PRI with CSU Network Module |
| NM-2CT1 | 2-Port Channelized T1/ISDN-PRI Network Module |
| NM-2CT1-CSU | 2-Port Channelized T1/ISDN-PRI with CSU Network Module |
| NM-1CE1B | 1-Port Channelized E1/ISDN-PRI Balanced Network Module |
| NM-1CE1U | 1-Port Channelized E1/ISDN-PRI Unbalanced Network Module |
| NM-2CE1B | 2-Port Channelized E1/ISDN-PRI Balanced Network Module |
| NM-2CE1U | 2-Port Channelized E1/ISDN-PRI Unbalanced Network Module |
| NM-1FE1CT1 | 1 Port F Ethernet 1 Port Channelized T1/ISDN-PRI NM |
| NM-1FE1CT1-CSU | 1 Port F Ethernet 1 Port Channelized T1/ISDN-PRI with CSU NM |
| NM-1FE1CE1B | 1 Port F Ethernet 1 Port Channelized E1/ISDN-PRI Balanced NM |
| NM-1FE1CE1U | 1 Port F. Ether.1Port Channelized E1/ISDN-PRI Unbalanced NM |
| NM-1FE2CT1 | 1 Port F Ethernet 2 Port Channelized T1/ISDN-PRI NM |
| NM-1FE2CT1-CSU | 1 Port F Ethernet 2 Port Channelized T1/ISDN-PRI with CSU NM |
| NM-1FE2CE1B | 1 Port F Ethernet 2 Port Channelized E1/ISDN-PRI Balanced NM |
| NM-1FE2CE1U | 1 Port F.Ether. 2Port Channelized E1/ISDN-PRI Unbalanced NM |
| NM-4E | 4-Port Ethernet Network Module |
| NM-4E1-IMA | 4-port E1 ATM Network Module with IMA |
| NM-4T | 4-Port Serial Network Module |
| NM-4T1-IMA | 4-port T1 ATM Network Module with IMA |
| NM-8E1-IMA | 8-port E1 ATM Network Module with IMA |
| NM-8T1-IMA | 8-port T1 ATM Network Module with IMA |
| NM-16A | 16 port Asynchronous Module |
| NM-16AM | 16 Port Analog Modem Network Module |
| NM-32A | 32 port Asynchronous Module |
| NM-6DM | 6 Port Digital Modem Network Module |
| NM-12DM | 12 Port Digital Modem Network Module |
| NM-18DM | 18 Port Digital Modem Network Module |
| NM-24DM | 24 Port Digital Modem Network Module |
| NM-30DM | 30 Port Digital Modem Network Module |
| NM-1ATM-25 | One port ATM 25Mbps network module |
| NM-COMPR | Compression Network Module |
| NM-1E2W-BUN | 1 Ethernet 2 WAN Card Slot Network Module FOR BUNDLES |
| NM-WMDA= | P2MP CPE Wireless Network Module for 2600/3600, Spare |
| NM-VPN/MP | VPN NM encryption acceleration for the 3620/3640 |
| Cisco 3600 Series Voice Interface Cards | |
| VIC-2DID | Two-port DID (Direct Inward Dial) voice/fax interface card |
| VIC-2E/M | Two-port Voice Interface Card - E&M |
| VIC-2FXO= | Two-port Voice Interface Card - FXO-Spare |
| VIC-2FXS | Two-port Voice Interface Card - FXS |
| VIC-2FXS= | Two-port Voice Interface Card - FXS-Spare |
| VIC-2FXO-M2 | Two-port Voice Interface Card - FXO w/ Reversal (for EU) |
| VIC-2FXO-EU | Two-port Voice Interface Card - FXO (for Europe) |
| VIC-2BRI-NT/TE | Two-port Voice Interface Card - BRI (NT & TE) |
| VIC-2BRI-S/T-TE | Two-port Voice Interface Card - BRI (Terminal) |
| VWIC-1MFT-E1 | 1-Port RJ-48 Multiflex Trunk - E1 |
| VWIC-2MFT-E1 | 2-Port RJ-48 Multiflex Trunk - E1 |
| VWIC-2MFT-E1-DI | 2-Port RJ-48 Multiflex Trunk - E1 With Drop and Insert |
| VWIC-1MFT-T1 | 1-Port RJ-48 Multiflex Trunk - T1 |
| VWIC-2MFT-T1-DI | 2-Port RJ-48 Multiflex Trunk - T1 With Drop and Insert |
| VWIC-2MFT-T1 | 2-Port RJ-48 Multiflex Trunk - T1 |
| VWIC-1MFT-G703 | 1-Port RJ-48 Multiflex Trunk - G.703 |
| VWIC-2MFT-G703 | 2-Port RJ-48 Multiflex Trunk - G.703 |
| Cisco 3600 Series WAN Interface Cards | |
| WIC-1T | 1-Port Serial WAN Interface Card |
| WIC-1B-S/T | 1-Port ISDN WAN Interface Card(dial and leased line) |
| WIC-1B-U | 1-Port ISDN withNT-1WAN Interface Card(dial and leased line) |
| WIC-1DSU-56K4 | 1-port 4-WIRE 56/64 KBPS WAN INTERFACE CARD |
| WIC-1DSU-T1 | 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card |
| WIC-2T | 2-Port Serial WAN Interface Card |
| WIC-2A/S | 2-Port Async/Sync Serial WAN Interface Card |
| CD36-AHK2-12.1.5= | Cisco 3600 Enterprise/FW Plus IPSEC 3DES Feature Pack |
| CD36-AHL-12.1.5= | Cisco 3600 Enterprise/FW Plus IPSEC 56 Feature Pack |
| CD36-AL-12.1.5= | Cisco 3600 Enterprise Plus IPSEC 56 Feature Pack |
| CD36-AP-12.1.5= | Cisco 3600 Enterprise Plus Feature Pack |
| CD36-B-12.1.5= | Cisco 3600 IP/IPX/AppleTalk/DECnet Feature Pack |
| CD36-BHP-12.1.5= | Cisco 3600 IP/IPX/AppleTalk/DECnet/FW Plus Feature Pack |
| CD36-BP-12.1.5= | Cisco 3600 IP/IPX/AppleTalk/DECnet Plus Feature Pack |
| CD36-C-12.1.5= | Cisco 3600 IP Feature Pack |
| CD36-CH-12.1.5= | Cisco 3600 IP/FW Feature Pack |
| CD36-CHK2-12.1.5= | Cisco 3600 IP/FW Plus IPSEC 3DES Feature Pack |
| CD36-CHL-12.1.5= | Cisco 3600 IP/FW Plus IPSEC 56 Feature Pack |
| CD36-CK2-12.1.5= | Cisco 3600 IP Plus IPSEC 3DES Feature Pack |
| CD36-CL-12.1.5= | Cisco 3600 IP Plus IPSEC 56 Feature Pack |
| CD36-CP-12.1.5= | Cisco 3600 IP Plus Feature Pack |
