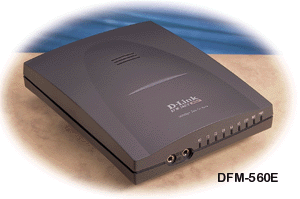

DFM-560E
High-Speed ExternalData/ Fax/ Voice Modem
56kbps External Data/ Fax/ Voicemodem
S P E C I F I C A T I O N S
Data Mode |
![]() |
ITU-T V.90 56kbps capable download speed from Internet Service Provider supporting 56k Flex & V.90 |
![]() |
Speed: 56000/ 33600/ 31200/ 28800/ 26400/ 24000/ 19200/ 16800/ 14400/ 12000/ 9600/ 7200/ 4800/ 2400/ 1200/ 300/ 75bps, throughput up to 115200bps |
![]() |
Compatibility : V.34, V.32bis, V.22bis, V.22A/B, V.23 and V.2.1; Bell 212A and 103 industry standard AT command set |
![]() |
V.42LAPM, MINP 2-4 error correction |
![]() |
V.42bis and MNP5 data compression |
![]() |
NVRAM directory and stored profiles |
![]() |
Built in DTE interfaces: - Parallel 16550A UART-compatible interface - Serial ITU-T V.42 (EIA/ TIA-232-E) |
![]() |
Caller ID and distinction ring detect |
![]() |
V.80 and Rockwell Video
Synchronous access modes support host based communication protocol |
Fax Mode |
![]() |
Speed : 140/ 12000/ 9600/ 7200/ 4800/ 400bps |
![]() |
Compatibility: ITU-T V.17, V.29, V.27 ter and V.21 channel 2 |
![]() |
Group 3 fax send and receive |
![]() |
EIA Class 1 and 2 command set |
![]() |
Fax on demand and retrieval |
Voice |
![]() |
Tone detection/ generation nd call discrimination |
![]() |
Concurrent DTF detection |
![]() |
8-bit monophonic audio data encoding at 11,025Khz or 72000khz |
![]() |
Enhanced 2-bits or 4-bits per sample ADPCM coding and decoding at 7200hz |
![]() |
Supports digital telephone answering machine, voice annotation and audio recording playback applications |
![]() |
Voice view alternating voice and data (option) |
![]() |
Multiple voice mail boxes . |
Audio Span/ SAVD/ SP |
![]() |
IUT-T V.61 modulation (4.8kbps
data plus audio), handset or headset half duplex speakerphone - ML 144 modulation - ML 288 modulation - Full-duplex speakerphone (FDSP) mode - Acoustic and line echo cancellation - Microphone gain and muting - Speaker volume control and muting |
D.S.V.D. |
![]() |
ITU-T V.70 DSVD using the RCDSVD SCP |
![]() |
ITU-T interoperable G.729 Annex B |
![]() |
SIG Digi Talk DSVD |
![]() |
Voice/ silence detection and handset echo cancellation |
![]() |
Robust DSVD timing recovery |
![]() |
Handset, headset or half-duple speakerphone |
![]() |
Supports host-supplied DSVD |
