Fax/Modem Ethernet
PC Cards
Advanced Engineering & Compact Design
These cards are equipped with processors and memory to perform fax modem transmission,
alleviating the host computer's CPU workload while freeing up its memory.
Fast Modem Speed & Battery Saving
The built-in modem has the fast speed . The cards perform error correction and data
compression, and consequently save the notebook's battery life while running cooler and
working
faster.
Fax/Modem PC Cards
- PCMCIA Type II Release
2.1, JEIDA 4.1, PC Card 95
- Up to V.34 33,600bps or
56,000 data
transmission/reception
- Digital line protection
- Internal DAA
- Send/receive faxes from
computers or fax machines
- Low power consumption
- Sleep mode when idle
- Internal buffer memory
provided, use no system
memory |
- AT command set
- V.42bis & MNP 2-5 data compression and error correction
- ETC (Enhanced
Throughput Cellular)
protocol for mobile cellular
- EIA/TIA 578 Class 1
compliant
- FCC Class B, CE Mark

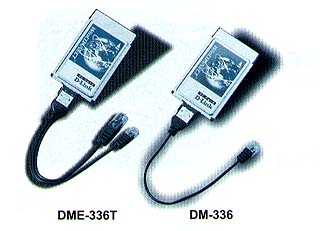

Combo Fax/Modem
Ethernet PC Cards
- All of the above, plus:
- Transfer data with network stations and sends/receives faxes concurrently in one step
- Connect to 10BASE-T
Ethernet
LAN Drivers
- ODI
- NDIS 2.x, 3.x
- Packet driver
- Runs NE2000 drivers
Operation Environments
- Novell NetWare 3.x, 4.x
- Microsoft Windows for
Workgroups |
- Microsoft Windows 3.1
- Microsoft LAN Manager
- Microsoft Windows 95
- Microsoft Windows NT 3.5x
Connectors
- RJ-11 phone cable plug
- RJ-45 10BASE-T plug
Telecom Certification
- FCC Part 68
- Japan PTT (JATE)
|
