DE-660CT

Описание

• Low power consumption
• Choices of combo BNC/10BASE-T, 10BASE-T only, AUI media couplers
• Auto-detection of connected media
• Auto-correction of reverse polarity for TTP
• Laser-welded solid case
• Passes IEEE 802.3 1500V high pot test
• Media couplers provide extensive diagnostic LEDs
• No media coupler: through 6-foot cable (for 10BASE-T)
• Simple, menu-driven network O.S. installation program
• Directly uses NE-2000 driver programs
• Full driver support

Powerful MobileNet

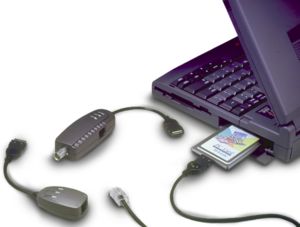

• The D-Link DE-660CT is a powerful MobileNet Ethernet PC card for notebook computers. It is designed to unleash the power of today's notebooks and turn them into robust stations or servers in diverse networking environments.

Turbo Power

• MobileNET brings throughput up significantly compared with the conventional PC cards even in the half-duplex mode. The turbo power is build directly into MobileNET's controller, dispensing users of the need for band-air drivers.

20 Mbps Full Duplex

• MobileNet's full-duplex function allows a notebook to connect to a switch and become a power server, receiving and transmitting data at the same time on a dedicated 20Mbps bandwidth.

Faster Speed

• MobilNET's innovative Just In-Time Interrupt (JITI) technology boosts I/O speed further. The card temporarily interrupts the host's operation to permit prioritized network data to pass through and eliminate delays.

Snap-in Installation

• MobilNET's driver programs automatically search for and assign an available IRQ and I/O address. With the hot-swap support, users can plug in the card and connect it to the network anytime without any need to configure.

Standards

• IEEE 802.3 10BASE-T, 10BASE2, 10BASE5 Ethernet Standard
• PCMCIA v2.x, PC Card 95 and JEIDA v4.x Type II & III

Topologies

• 10BASE-T; star
• 10BASE2, 10BASE5: bus

Protocol

• CSMA/CD

Network Data Transfer Rates

• 10Mbps (half duplex)
• 20Mbps (full duplex)

Network Media

• UTP Cat. 3,4,5 (100m)

RAM Buffer

• 32KB

Diagnostic LED Report

• Rx/Link (10BASE-T)
• Tx/Power On
• Collision

IRQ

• Auto-assigned by drivers

I/O Address

• (Block of 32KB)
• Auto-assigned by drivers

Power Consumption

• DE-660CT: 1.45 watts
• DE-660T: 0.25 watt
• DE-660LT: 0.25 watt
• DE-660AUI: 0.25 watt + 12VDC 500mA

Dimensions

• 85,6 x 54 x 5 mm (base unit)

Weight

• DE-660CT: 92 grams
• DE-660T: 63 grams
• DE-660LT: 87 grams
• DE-660AUI: 70 grams

Operating Temperature

• 0 - 55 C

Storage Temperature

• 30 - 60 C

Humidity

• 5% - 90% non-condensing

Emission (EMI)

• DE-660CT, DE-660T: FCC Class B
• Canada ICES-003 Class B
• CE Mark Class B
• VCCI Class 2
• DE-660LT, DE-660AUI: FCC Class A

Warranty

• Lifetime Warranty

Drivers Supported

• D-Link LANsmart
• D-Link TCP/IP
• Novell NetWare 3.x. 4.x ODI server
• Novell NetWare Client 32 for DOS, Window 3.x, Windows 95
• Window 95
• Window NT
• Windows NT Advanced Server
• Microsoft LAN Manager
• Microsoft Client for DOS
• IBM LAN Server
• IBM PC LAN Support Program
• IBM DOS LAN Service
• Packet driver
• WINSock for Internet
• DEC Pathworks 4.0, 5.0
• Artisoft LANtastic/AI
• SCO Unix
• AT&T Unix
• NCSA
• NDIS Driver
• PC / TCP
• Sun PC-NFS
• Banyan VINES
