DFE-650TX

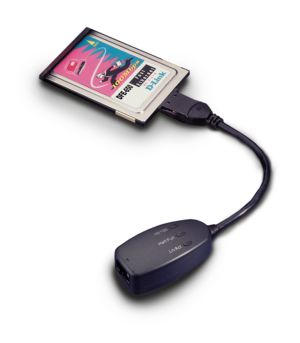

High-Performance Dual-Speed Adapter for PCMCIA

• The D-Link DFE-650TX is a Dual Speed Ethernet/Fast Ethernet 10/100Mbps PCMCIA card for notebook computers. It allows users to easily connect to a network and share databases and resources in diverse environments. It is engineered to unleash the power of today's notebooks and turn them into robust stations or servers.

NWAY Auto-negotiation

• The card's single connector connects to either 10Base-T Ethernet or 100Base-TX Fast Ethernet completely without any need to set configuration. It detects the connected hub's capability and auto-negotiates to use the highest available speed.

Full Duplex Support

• Full/half duplex operation is auto-detected in 10Base-T mode. In full duplex, the notebook is connected to a switch in a dedicated segment. With transmission and reception taking place simultaneously, data transfer is doubled. Mobile users can thus hook to a network and turn their notebooks into power servers. The DFE-650TX does NOT support 100Mbps Full Duplex mode.

Snap-In Installation

• The card auto-detects IRQs and I/O addresses available in the notebook. Together with the hot-swap support, this feature brings a lot fof convenience to DOS and Windows users without Win 95 installed.

Complete Compatibility

• The card is compatible with all major notebook, sub-notebook and palmtop PCs, supports the main Socket and Card Services and provides driver programs for all popular networking operating systems.

Comprehensive Driver Support

• The card supports all major network operating systems, including NetWare, Windows NT, Windows 95 and Unix.

Features

• 10/100Mbps dual speed NWAY interface
• Half/full duplex supported in 10Base-T mode
• Single RJ-45 shielded connector
• Minimal power consumption
• UTP/STP cabling supported
• Auto-correction of reverse polarity
• Laser-welded solid case
• Passes IEEE 802.3 1500V high pot test
• Easy-to-view diagnostic LEDs
• Menu-driven network O.S. installation program
• Complete driver support

Standards

• IEEE 802.3 10Base-T Ethernet
• IEEE 802.3u 100Base-TX Fast Ethernet
• PCMCIA v2.x, PC Card 95 and JEIDA v4.x Type II

Topology

• Star

Protocol

• CSMA/CD

Network Data Transfer Rates

• 10Mbps (Ethernet)
• 100Mbps (Fast Ethernet)

Network Media

• 10Base-T: UTP Cat. 3, 4, 5 (100m)
• 100Base-TX: UTP Cat. 5 (100m)
• 10Base-T, 100Base-TX: UTP Cat. 5 (100m)
• EIA/TIA-568 100-ohm screened twisted-pair (STP) (100m)

Connectors

• 68-pin for connection to PCMCIA slot
• 15 pin for connection to media coupler

RAM Buffer

• 64KB

Diagnostic LED Report

• Link, act (TX, Rx)
• 100Mbps speed indicator
• Full duplex indicator

IRQs

• Auto-assembled by the drivers

I/O Addresses

• Blocks of 32KB
• Auto-assigned by drivers

Power Consumption

• 2 watts (max.)

Dimensions

• Base Unit: 85.6 x 54 x 5 mm (3.37 x 2.126 x 0.2 inches)

Weights

• Base unit: 30 grams (1.06 oz)
• Media coupler: 25 grams (0.88 oz)

Operating Temperature

• 0 degrees to 55 degrees Celsius
• 32 degees to 131 degrees Farenheit

Storage Temperature

• 20 degrees to 80 degrees Celsius
• 4 degrees to 176 degrees Farenheit

Humidity

• 10% to 90% non-condensing

Emission (EMI)

• FCC Class B
• CE Mark

Drivers Supported

• NDIS 2.0 for: Banyan; IBM LAN Support/Services/IBM Wrap Server/IBM LAN Server/IBM Communication Manager 1.x
• NDIS 2.0 for: Microsoft LAN Manager for MS-DOS, Microsoft Network Client 3.0 for MS-DOS
• NDIS 2.0 for WIN/TCP PathWay Access
• NDIS 2.0 for DECnet Pathwork 4.0
• Sun PC-NFS 5.0
• Novell NetWare Client 32 for Windows 95
• Novell NetWare Client 32 for MS-DOS/Windows 3.x
• Novell NetWare Server 3.12
• Novell NetWare Server 4.x
• Novell NetWare DOS ODI
• Novell NetWare Lite
• Novell Personal NetWare
• Microsoft Windows NT 3.51
• Microsoft Windows NT 4.0
• Microsoft Windows 95
• Microsoft Winows 95 OSR 2
• Packet driver for NCSA
• Packet driver for FTP PC/TCP
• Packet driver for IPX
• Packet driver for Winso
