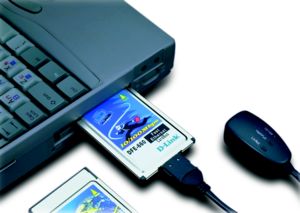

DFE-660TX
High Performance Dual-Speed
- This is a 32-bit high-performance dual-speed 10/100Mbps CardBus card designed to
permit users on a move to easily connect to a network and share databases and resources in
diverse environments. Supporting 20Mbps/200Mbps full duplex, this adapter is engineered to
unleash the power of today's notebooks and turn them into robust stations or servers.
NWay Auto-negotiation
- The card's single connector connects to either 10BASE-T Ethernet or 100BASE-TX
Fast Ethernet completely without any need to set configuration. It detects the connected
hub's capability and auto-negotiates to use the highest available speed.
Full Duplex Support
- Full/half duplex operation is auto-detected in both 10BASE-T and 100BASE-TX
modes. In full-duplex, the notebook is connected to a switch on a dedicated segment. With
transmission and reception taking place simultaneously, data transfer is doubled. Mobile
users can thus hook to a network and turn their notebooks into power servers.
Features
- 32-bit CardBus, PC Card
- 10/100Mbps dual-speed NWay interface
- Half/full duplex supported
- Single shielded RJ-45 connector
- PC Card Cardbus standards
- 68-pin front-end connector
- 15-pin back-end connector for media coupler
- UTP/STP cabling supported
- Laser-welded solid case
- Menu-driven network O.S. installation program
- FCC Class B, CE Mark, VCCI Class B
Drivers
- NDIS 2.0 for Banyan
- NDIS 2.0 for IBM LAN Support/Services
- NDIS 2.0 for IBM Warp Server, LAN Server, and
- Communication Manager 1.x
- NDIS 2.0 for Microsoft LAN Manager for MS-DOS
- NDIS 2.0 for Microsoft Network Client 3.0 for MS-DOS
- NDIS 2.0 for WIN/TCP PathWay Access
- NetWare DOS 0DI
- NetWare Lite
- Personal NetWare
- Windows 95
- Windows 95 OS R2
- Windows NT 3.51
- Windows NT 4.0
- Packet driver for FTP PC/TCP
- Packet driver for Winsock
