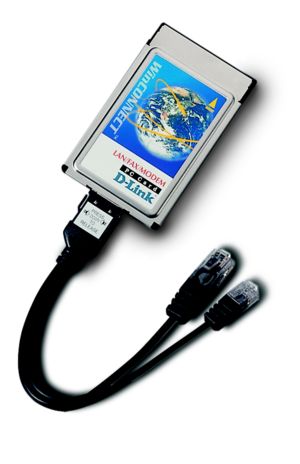

DME-336T

Multi-Function PCMCIA Ethernet/Fax/Modem Card

• Allows several communication tasks at the same time
• Transmit and receive data at up to 33,600 bps including send and receive FAXes from computers or FAX machines
• Connect to an Ethernet 10BaseT LAN

DME-336T Modem Specification for Data

• V.34 33,600 bps
• V.32 bis 14,400 bps
• AT command set
• V.42 bis & MNP 2-5 data compression and error correction
• ETC (Enhance Throughput Cellular) protocol for mobile cellular

DME-336T Modem Specification for FAX

• V.17 14,400 bps
• V.29 9,600 bps
• EIA/TIA 578 Class 1 compliant

DME-336T LAN Adapter Specifications

• IEEE 802.3 10BaseT
• 10 Mbps speed
• Internal buffer memory. No system memory used.
• NE2000 Compatible ODI version 3.x and NDIS version 2.x, 3.x driver supported

Driver Support

• IBM LAN Support
• Microsoft LAN Manager
• DEC pathWorks
• Sun
• PC-NFS
• Banyan VINES
• DOS ODI Client
• Personal NetWare
• Packet Driver
• PathWay
• Windows 95
• Windows for Workgroups
• Windows NT
• DOS
