V.90 Modem and 10/100 Dual-Speed Adapter

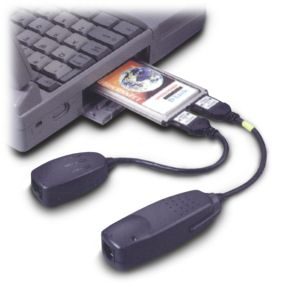

• The D-Link DMF-560TX is a 10/100Mb Dual Speed Ethernet PC Card with an integrated V.90/K56flex Data/Fax Modem. The DMF-560TX is targeted at notebook and laptop users that connect to a wide variety of data-communications devices and services, and require access to faster technologies. Laptop users are able to seamlessly connect to both Ethernet and Fast Ethernet LANs, as well as send and receive faxes, connect to the Internet, and dial into a Remote Access Server or PC using this one PCMCIA PC Card solution.
• The DMF-560TX strictly adheres to the IEEE Ethernet standards and the ITU Data Communications and Modem standards in order to ensure maximum interoperability. The DMF-560TX attempts to connect at the highest speed supported by an ISP, LAN, host modem, or fax machine and automatically defaults to a lower speed until a stable connection can be created.
• A menu-driven installation utility and included diagnostics provide a simple method for installation and troubleshooting. Microsoft Plug and Play compatibility and a wide assortment of drivers enable the DMF-560TX to work with most popular operating systems. Integrated digital line protection protects the modem from being damaged when connecting to a high current digital PABX.

Modem Operating Protocols

• V.90 (down-stream up to 56,000 bps)
• K56flex (down-stream up to 56,000 bps)
• V.34bis (up to 33,600 bps)
• V.34 (2,400 to 28,800 bps)
• V.32bis, V.32, V.22bis, V.23, V.22/Bell 212A, V.21/Bell 103

Error Correction Data Compression

• V.42/V.42bis and MCP Class 2 to 5

Fax Compatibility

• Group 3 send and receive
• EIA Class 1 fax commands
• V.17 (14,400 bps), V.29 (9600 bps), V.27ter (4800 bps),
• V.21 (300bps)

Dialing Capability

• DTMF tone and rotary pulse

Operating Modes

• Asynchronous full duplex
• Manual/Automatic Answer

Receive Sensitivity

• -40 dBn

Transmit Level

• Permissive -10 (+/- 1) dBm

Telephone Line Interface

• RJ-11, 2-wire dial-up

Network Standard and Interface

• IEEE 802.3 (10Base-T), RJ-45 w/ Category 3 or Higher Cable IEEE 802.3u (100Base-TX), RJ-45 w/ Category 5 or Shielded Twisted Pair Cable

PCMCIA Card / Socket Service Support

• PCMCIA Type II PC Card standard version 2.0 and newer

NOS and Software Support

• Windows 98
• Windows 95 and OSR2
• Windows NT 4.x/3.x
• Windows 3.x
• DOS
• Novell Netware
• Novell Personal Netware
• Microsoft LAN Manager
• Artisoft LANtastic
• FTP TCP/IP
• Banyan Vines

Interrupt and I/O Address Base Selection

• IRQ: 3, 4 ,5 ,7 ,9 , 10, 11, 12, 15
• I/O base for LAN: 220, 300, 320, 340
• I/O base for fax/modem: COM 2, COM 3, COM 4
