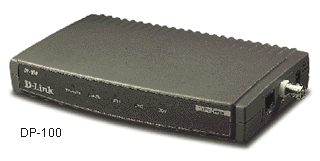

The print server is equipped
with 2 high-speed parallel ports, and 1 serial port transmitting at up to 115.2Kbps. This allows simultaneous connection to as many as
3 printers while eliminating PC printer port bottlenecks and reducing demands on network
servers.Bi-directional Communication
IBoth parallel ports support HP PJL protocol for
bi-directional network printer communication, proactively providing the administrator with
critical information about the network printers. |
|
Versatile
Administrative Program
A simple-to-operate GUI under Windows 3.x, Windows 95 and
Windows NT makes it possible to set up the print server in a
matter of minutes. Telnet support means that the administrator can also configure and
maintain the print server from any station on a Unix or TCP/IP network |
|
Features
1 combo auto-sensing10BASE-T/BNC port
2 IEEE 1284-compliant high-speed parallel ports
1 serial port baud rate up to 115.2Kbps
Easy configuration through Windows, Telnet
Supports up to 36 Novell NetWare file servers
MIB-II (RFC 1213) for SNMP-standard management
Flash memory for easy software upgrade
LED report for power/Tx, link/Rx, LPT1, LPT2, COM
LPR program for Win95 TCP/IP printing
Palm size, light weight
FCC Class A, CE Mark, VCCI Class 1, C-Tick
UL, CSA, TUV/GS
|
|
Supported Frame Types
IEEE 802.2
IEEE 802.3
Ethernet_II
Ethernet_SNAP
|
|
Supported Network Protocols
IP
IPX/SPX
NetBEUI
Apple EtherTalk
|
|
Supported Network O.S.
Windows NT
Windows 95
Windows for Workgroups
LAN Manager
IBM LAN Server
Mac O.S. AppleTalk
NetWare bindary
NetWare native NDS
HP-UX Unix
Sun O.S.
Solaris
SCO Unix
IBM AIX
UnixWare
lpd
|
