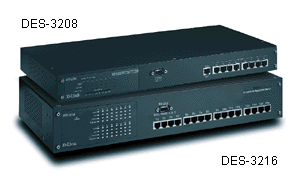

DES-3208, 3216
Описание
8 or 16 dual-speed 10BASE-T/100BASE-TX NWay ports
1 NWay port supporting 10BASE-T/100BASE-TX, 40-pin SCSI MII connection (DES-3208 only)
MDI cascading port
Auto-correction of Rx polarity reverse
UTP, STP supported
Extensive front-panel diagnostic LEDs
Bandwidth utilization LED array
Internal universal power supply
FCC Class A, CE Mark, VCCI Class A, C-Tick
UL, CSA, TUV/GS
19-inch standard rack-mount width
Характеристики
Flow control against packet loss
Store-and-forward switching method
RAM buffer dynamically allocated for each port
Auto-learning of network configuration
Packet filtering/forwarding rates:
148,800 pps per port (in half duplex)
Filtering address table:
8K per device
RAM buffer:
8MB per device
Management
Standard SNMP MIBs
Spanning Tree for redundant path backup
Terminal program
Telnet supported
Firmware upgradable through TFTP
RS-232 console port
User-customizable filters
D-View SNMP management software module provided
Optional OpenView/Unix, SunNet Manager/Unix management modules available
Broadcast storm protection, VLAN supported *
RMON, Spanning Tree Protocol supported
