Cisco Serial Cables |
One of the most complicated parts of setting up a network system (router, switch, hub, or access server) is the selection of the serial cables to connect the network system to the serial devices in your network. There are many different serial cables with seemingly similar features, and finding the correct cable can be a challenge. The information that follows will quickly and easily guide you through the process of selecting the right serial cables for your network.
Selecting the proper serial cable is as easy as knowing the answers to three questions
With the answers to these questions, and the model of your network system, you can read the part number of the cable required from Table 16-5.
Devices that communicate over a serial interface are divided into two modes DTE and DCE. The most important difference between these types of devices is that the DCE device supplies the clock signal that paces the communications on the bus. The documentation that came with the device should indicate whether it is DTE or DCE (some devices have a jumper to select either mode). If you cannot find the information in the documentation, use the table below to help you select the proper class.
| Table 19-5: DTE or DCE Determination | ||||
| DTE | DCE | Selectable DTE or DCE1 | ||
|---|---|---|---|---|
| Device | Terminals | Modems CSUDSU Multiplexers |
Routers Hubs Switches Access servers |
|
| Gender | Ma6le | Female | Either | |
|
||||
Note Note The cable itself identifies the Cisco router as a DTE or DCE device to other devices in the network; for this reason, it is important to select the correct product number from the table below.
If pins protrude from the base of the connector, the plug is male. If the connector has holes to accept the pins, the receptacle is female. Refer to the following figure to identify the connector you need.
A number of different standards define the signaling over a serial cable (including EIATIA-232, X.21, V.35, EIATIA-449, EIA-530, and EIA-613 HSSI). Each standard defines the signals on the cable and specifies the connector at the end of the cable. The documentation for the device being connected should indicate the signaling standard used for that device. If you cannot find the information in the documentation, use the illustrations inside to select the signaling standard required. Select the connector in the figure below that will mate with the connector on your device, not the illustration that looks like the connector on the device.

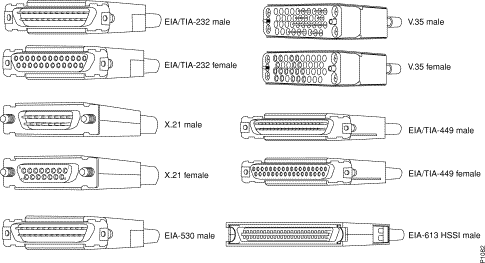

Figure 19-1: Serial Cable Connectors-Network Ends
| Table 19-6: Serial Cable Part Numbers | ||||||
| Mode | Cable Gender | Signaling | Cisco 7500 | Cisco 4500-M and 4700-M; and Cisco 3600 Series | Cisco 2500 Series AccessPro PC Cards Access Server Series Cisco 1600 Series |
|
|---|---|---|---|---|---|---|
| DTE | Male | EIATIA-232 | CAB-232MT CAB-OCT-232-MT |
CAB-232MT CAB-OCT-232-MT |
CAB-232MT | |
| EIATIA-449 | CAB-449MT | CAB-449MT2 | CAB-449MT | |||
| V.35 | CAB-V35MT CAB-OCT-V35-MT |
CAB-V35MT2 CAB-OCT-V35-MT3 |
CAB-V35MT | |||
| X.21 | CAB-X21MT CAB-OCT-X21-MT |
CAB-X21MT2 | CAB-X21MT | |||
| EIA-530 | CAB-530MT | CAB-530MT2 | CAB-530MT | |||
| HSSI | CAB-HSI1 | CAB-HSI1 | - | |||
| ASYNC | - | - | CAB-OCTAL-ASYNC1 | |||
| T1 | CAB-7KCT1DB155 | CAB-7KCT1DB152 | - | |||
| E1 | CAB-E1-BNC5 | CAB-E1-BNC2 CAB-E1-BNC-3M |
CAB-E1-BNC71 | |||
| CAB-E1-DB155 | CAB-E1-DB152 | CAB-E1-DB1571 | ||||
| CAB-E1-PRI5 CAB-E1-PRINT5 |
CAB-E1-PRI2 CAB-E1-PRINT |
CAB-E1-PRI71 CAB-E1-PRINT71 |
||||
| CAB-E1-TWINAX5 | CAB-E1-TWINAX2 CAB-E1-TWINAX-3M8 |
CAB-E1-TWINAX71 | ||||
| - | CAB-PCA-VA5 | - | - | |||
| CAB-PCA-VB5 | - | - | ||||
| CAB-PCA-Y5 | - | - | ||||
| Female | V.35 | - | CAB-V35FT3 | - | ||
| DCE | Male | V.35 | - | CAB-V35MC9 | - | |
| HSSI | CAB-HNUL5 | CAB-HNUL6 | - | |||
| T1 | CAB-7KCT1NULL5 | CAB-7KCT1NULL2 | - | |||
| Female | EIATIA-232 | CAB-232FC CAB-OCT-232-FC |
CAB-232FC2 CAB-OCT-232-FC3 |
CAB-232FC | ||
| EIATIA-449 | CAB-449FC | CAB-449FC2 | CAB-449FC | |||
| V.35 | CAB-V35FC CAB-OCT-V35-FC |
CAB-V35FC2 CAB-OCT-V35-FC3 |
CAB-V35FC | |||
| X.21 | CAB-X21FC CAB-OCT-X21-FC |
CAB-X21FC2 | CAB-X21FC | |||
| EIA-530 | - | - | - | |||
|
||||||
To order serial cables and other Cisco products, contact Cisco as described in the "Ordering Products" chapter.
This section describes serial cables by product and part number. The illustrations in this section show the Cisco end and the network end of each serial cable. The connector on the left is the Cisco end of the cable. The connector on the right is the network end of the cable.
The following illustration shows serial cable CAB-232FC (part number 72-0794-01), which is used in the following systems the Cisco 7000 family, Cisco 4000 series, Cisco 3600 series, Cisco 2500 series, Cisco 1600 series, Cisco access servers, and AccessPro PC cards. This cable has a male DB-60 connector on the Cisco end and a female DB-25 connector on the network end.
Figure 19-2: CAB-232FC
The following illustration shows serial cable CAB-232MT (part number 72-0793-01), which is used in the following systems the Cisco 7000 family, Cisco 4000 series, Cisco 3600 series, Cisco 2500 series, Cisco 1600 series, Cisco access servers, and AccessPro PC cards. This cable has a male DB-60 connector on the Cisco end and a male DB-25 connector on the network end.
Figure 19-3: CAB-232MT
The following illustration shows adapter CAB-25AS-MMOD (part number CAB-25AS-MMOD), which is used in the following systems the Cisco 2500 series, including the access server series (Cisco 2509 through Cisco 2512). This adapter has an RJ-45 connector on one side and a male DB-25 connector on the other side.
Figure 19-4: CAB-25AS-MMOD
The following illustration shows adapter CAB-25AS-FDTE (part number CAB-25AS-FDTE), which is used in the Cisco 2500 series, including the access server series (Cisco 2509 through Cisco 2512). This adapter has an RJ-45 connector on one side and a female DB-25 connector on the other side.
Figure 19-5: CAB-25AS-FDTE
The following illustration shows serial cable CAB-449FC (part number 72-0796-01), which is used in the following systems the Cisco 7000 family, Cisco 4000 series, Cisco 3600 series, Cisco 2500 series, Cisco 1600 series, Cisco access servers, and AccessPro PC cards. This cable has a male DB-60 connector on the Cisco end and a female DB-37 connector on the network end.
Figure 19-6: CAB-449FC
The following illustration shows serial cable CAB-449MT (part number 72-0795-01), which is used in the following systems the Cisco 7000 family, Cisco 4000 series, Cisco 3600 series, Cisco 2500 series, Cisco 1600 series, Cisco access servers, and AccessPro PC cards. This cable has a male DB-60 connector on the Cisco end and a male DB-37 connector on the network end.
Figure 19-7: CAB-449MT
The following illustration shows serial cable CAB-500RJ (part number 31-0590-01), which is used in the following systems the Cisco 2500 series and the Cisco CS500. This cable has an RJ-45 connector on both ends.
Figure 19-8: CAB-500RJ
The following illustration shows serial cable CAB-530MT (part number 72-0797-01), which is used in the following systems the Cisco 7000 family, Cisco 4000 series, Cisco 3600 series, Cisco 2500 series, Cisco 1600 series, Cisco access servers, and AccessPro PC cards. This cable has a male DB-60 connector on the Cisco end and a male DB-25 connector on the network end.
Figure 19-9: CAB-530MT
The following illustration shows serial cable CAB-7KCT1DB15 (part number 72-0799-00), which is used in the following systems the Cisco 7500 series, Cisco 7000 series, Cisco 4000 series, and Cisco 3600 series. This cable has a male DB-15 connector on the Cisco end and a male DB-15 connector on the network end.
Figure 19-10: CAB-7KCT1DB15
The following illustration shows serial cable CAB-7KCT1NULL (part number 72-0800-00), which is used in the following systems the Cisco 7500 series, Cisco 7000 series, Cisco 4000 series, and Cisco 3600 series systems. This cable has a male DB-15 connector on the Cisco end and a male DB-15 connector on the network end.
Figure 19-11: CAB-7KCT1NULL
The following illustration shows serial cable CAB-E1-BNC (part number CAB-E1-BNC), which used in the Cisco 7500 series, 7000 series, Cisco 4000 series, Cisco 3600 series, and Cisco access server systems. This cable is 5 meters in length, and has a male DB-15 connector on the Cisco end and two BNC connectors on the network end.
The CAB-E1-BNC-3M (part number CAB-E1-BNC-3M) is identical to the CAB-E1-BNC, except that the CAB-E1-BNC-3M is 3 meters in length. This cable is used in Cisco 4000 series systems.
Figure 19-12: CAB-E1-BNC and CAB-E1-BNC-3M
The following illustration shows serial cable CAB-E1-DB15 (part number CAB-E1-DB15), which is used in the Cisco 7500 series, 7000 series, Cisco 4000 series, Cisco 3600 series, and Cisco access server systems. This cable has a male DB-15 connector on the Cisco end and a DB-15 connector on the network end.
Figure 19-13: CAB-E1-DB15
The following illustration shows serial cable CAB-E1-PRI (part number CAB-E1-PRI), which is used in the Cisco 7500 series, 7000 series, Cisco 4000 series, Cisco 3600 series, and Cisco access server systems. This cable has a male DB-15 connector on the Cisco end and an RJ-45 connector on the network end.
The CAB-E1-PRINT (part number CAB-E1-PRINT) is identical to the CAB-E1-PRI, except that the RJ-45 connector is connected as a network terminal (NT1) instead of as a network interface. This cable is used in the Cisco 7500 series, 7000 series, Cisco 4000 series, and Cisco access server systems.
Figure 19-14: CAB-E1-PRI and CAB-E1-PRINT
The following illustration shows serial cable CAB-E1-TWINAX (part number CAB-E1-TWINAX), which is used in the Cisco 7500 series, Cisco 7000 series, Cisco 3600 series systems, and AccessPro PC cards. This cable has a male DB-15 connector on the Cisco end and two BNC connectors on the network end.
The CAB-E1-TWINAX-3M (part number CAB-E1-TWINAX-3M) is identical to the CAB-E1-TWINAX. This cable is used in the Cisco 4000 series systems.
Figure 19-15: CAB-E1-TWINAX and CAB-E1-TWINAX-3M
The following illustration shows serial cable CAB-HNUL (part number 72-0727-01), which is used in the Cisco 7500 series, Cisco 7000 series, and Cisco 4000 series (NP-1HSSI) systems. This cable has a male DB-50 (SCSI) connector on the Cisco end and a male DB-50 (SCSI) connector on the network end.
Figure 19-16: CAB-HNUL
The following illustration shows serial cable CAB-HSI1 (part number 72-0710-01), which is used in the Cisco 7500 series, Cisco 7000 series, and Cisco 4000 series (NP-1HSSI). This cable has a male DB-50 (SCSI) connector on the Cisco end and a male DB-50 (SCSI) connector on the network end.
Figure 19-17: CAB-HSI1
The following illustration shows serial cable CAB-NP232C (part number 72-0736-01), which is used in the Cisco 4000 series (2T) systems. This cable has a male DB-50 connector on the Cisco end and a female DB-25 connector on the network end.
Figure 19-18: CAB-NP232C
The following illustration shows serial cable CAB-NP232T (part number 72-0670-01), which is used in the Cisco 4000 series (2T) systems. This cable has a male DB-50 connector on the Cisco end and a male DB-25 connector on the network end.
Figure 19-19: CAB-NP232T
The following illustration shows serial cable CAB-NP449C (part number 72-0738-01), which is used in the Cisco 4000 series (2T) systems. This cable has a male DB-50 connector on the Cisco end and a female DB-37 connector on the network end.
Figure 19-20: CAB-NP449C
The following illustration shows serial cable CAB-NP449T (part number 72-0672-01), which is used in the Cisco 4000 series (2T) systems. This cable has a male DB-50 connector on the Cisco end and a male DB-37 connector on the network end.
Figure 19-21: CAB-NP449T
The following illustration shows serial cable CAB-NP530 (part number 72-0732-01), which is used in the Cisco 4000 series (2T) systems. This cable has a male DB-50 connector on the Cisco end and a male DB-25 connector on the network end.
Figure 19-22: CAB-NP530
The following illustration shows serial cable CAB-NPV35CV2 (part number 72-0740-02), which is used in the Cisco 4000 series (2T) systems. This cable has a male DB-50 connector on the Cisco end and a female Winchester connector on the network end.
Figure 19-23: CAB-NPV35CV2
The following illustration shows serial cable CAB-NPV35TV2 (part number 72-0671-02), which is used in the Cisco 4000 series (2T) systems. This cable has a male DB-50 connector on the Cisco end and a male Winchester connector on the network end.
Figure 19-24: CAB-NPV35TV2
The following illustration shows serial cable CAB-NPX21C (part number 72-0737-01), which is used in the Cisco 4000 series (2T) systems. This cable has a male DB-50 connector on the Cisco end and a female DB-15 connector on the network end.
Figure 19-25: CAB-NPX21C
The following illustration shows serial cable CAB-NPX21T (part number 72-0683-02), which is used in the Cisco 4000 series (2T) systems. This cable has a male DB-50 connector on the Cisco end and a male DB-15 connector on the network end.
Figure 19-26: CAB-NPX21T
The following illustration shows serial cable CAB-OCT-232-MT (part number CAB-OCT-232-MT), which is used with the PA-8T-232 port adapter for the Cisco 7000 family, and in Cisco 4000 series systems with the NP-2T16S-RS232 network processor module. This cable has a female 200-pin, Molex connector on the Cisco end and eight 25-pin Winchester block-type EIATIA-232 male connectors on the network end. (See Figure 16-1 for the EIATIA-232 connector detail.)
The CAB-OCT-232-FC (part number CAB-OCT-232-FC) is identical to the CAB-OCT-232-MT, except that the CAB-OCT-232-FC has eight 25-pin Winchester block-type EIATIA-232 female connectors on the network end. This cable is also used with the PA-8T-232 port adapter for the Cisco 7000 family, and in Cisco 4000 series systems with the NP-2T16S-RS232 network processor module.
Figure 19-27: CAB-OCT-232-MT and CAB-OCT-232-FC

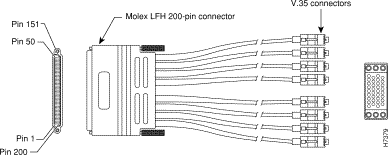

The following illustration shows serial cable CAB-OCT-V35-MT (part number CAB-OCT-V35-MT), which is used with the PA-8T-V35 port adapter for the Cisco 7000 family, and in Cisco 4000 series systems with the NP-2T16S-V.35 network processor module. This cables has a female 200-pin, Molex connector on the Cisco end and eight 34-pin Winchester block-type V.35 male connectors on the network end. (See Figure 16-1 for the V.35 connector detail.)
The CAB-OCT-V35-FC (part number CAB-OCT-V35-FC) is identical to the CAB-OCT-V35-MT, except that the CAB-OCT-V35-FC has eight 34-pin Winchester block-type V.35 female connectors on the network end. This cable is also used with the PA-8T-V35 port adapter for the Cisco 7000 family, and in Cisco 4000 series systems with the NP-2T16S-V.35 network processor module.
Figure 19-28: CAB-OCT-V35-MT and CAB-OCT-V35-FC

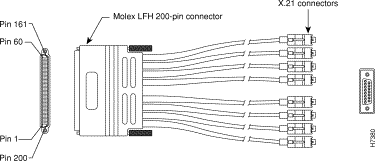

The following illustration shows serial cable CAB-OCT-X21-MT (part number CAB-OCT-X21-MT), which is used with the PA-8T-X21 port adapter for the Cisco 7000 family, and in Cisco 4000 series systems with the NP-2T16S-X21 network processor module. This cable has a female 200-pin, Molex connector on the Cisco end and eight 15-pin Winchester block-type X.21 male connectors on the network end. (See Figure 16-1 for the X.21 connector detail.)
The CAB-OCT-X21-FC (part number CAB-OCT-X21-FC) is identical to the CAB-OCT-X21-MT, except that the CAB-OCT-X21-FC has eight 15-pin Winchester block-type X.21 female connectors on the network end. This cable is also used with the PA-8T-X21 port adapter for the Cisco 7000 family, and in Cisco 4000 series systems with the NP-2T16S-X21 network processor module.
Figure 19-29: CAB-OCT-X21-MT and CAB-OCT-X21-FC
The following illustration shows serial cable CAB-OCTAL-ASYNC (part number CAB-OCTAL-ASYNC), which is used in the access server series (Cisco 2509 through Cisco 2512). This cable has a male DB-68 (SCSI II) connector on the Cisco end and eight RJ-45 connectors on the network end.
Figure 19-30: CAB-OCTAL-ASYNC
The following illustration shows serial cable CAB-OCTAL-MODEM (part number CAB-OCTAL-MODEM), which is used in the access server series (Cisco 2509 through Cisco 2512). This cable has a male DB-68 (SCSI II) connector on the Cisco end and eight DB-25 connectors on the network end.

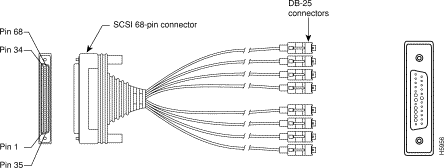

Figure 19-31: CAB-OCTAL-MODEM
The following illustration shows serial cable CAB-PCA-VA (part number CAB-PCA-VA) and serial cable CAB-PCA-VB (part number CAB-PCA-VB), which are used in the Cisco 7500 series and 7000 series systems. The CAB-PCA-VA has a female DB-78 connector on the Cisco end. The CAB-PCA-VB has a male DB-78 connector on the Cisco end. Both cables have a DB-48 type-A connector on the network end.
Figure 19-32: CAB-PCA-VA and CAB-PCA-VB

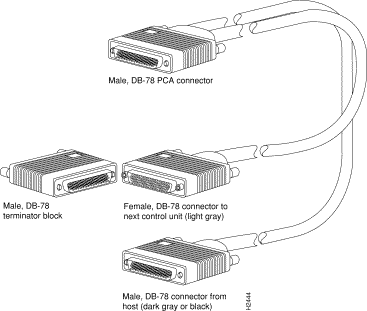

The following illustration shows serial cable CAB-PCA-Y (part number CAB-PCA-Y), which is used in the Cisco 7500 series and 7000 series systems. The CAB-PCA-Y is a spare Y cable with female and male DB-78 connectors; this cable ships with the Cisco 7000 series and Cisco 7500 series CIP2.
Figure 19-33: CAB-PCA-Y
The following illustration shows serial cable CAB-R23 (part number 74-0173), which is a general serial cable for all router platforms. This cable has a female DB-25 connector on one end and a male DB-25 connector on the other end. Either end of the CAB-R23 cable can be the Cisco end or the network end, depending on whether the Cisco router is designated as a DCE device or a DTE device. If the router is designated as a DCE device, the female DB-25 connector is the Cisco end. If the router is designated as a DTE device, the male DB-25 connector is the Cisco end.
Figure 19-34: CAB-R23
The following illustration shows serial cable CAB-R44 (part number 74-0187), which is a general serial cable for all router platforms. This cable has a female DB-37 connector on one end and a male DB-37 connector on the other end. Either end of the CAB-R44 cable can be the Cisco end or the network end, depending on whether the Cisco router is designated as a DCE device or a DTE device. If the router is designated as a DCE device, the female DB-37 connector is the Cisco end. If the router is designated as a DTE device, the male DB-37 connector is the Cisco end.
Figure 19-35: CAB-R44
The following illustration shows serial cable CAB-V35FC (part number 72-0792-01), which is used in the following systems the Cisco 7000 family, Cisco 4000 series, Cisco 3600 series, Cisco 2500 series, Cisco 1600 series, Cisco access servers, and AccessPro PC cards. This cable has a male DB-60 connector on the Cisco end and a female Winchester connector on the network end.
Figure 19-36: CAB-V35FC
The following illustration shows serial cable CAB-V35FT (part number 72-0801-01), which is used in the Cisco 4000 series systems. This cable has a male DB-60 connector on the Cisco end and a female Winchester connector on the network end.
Figure 19-37: CAB-V35FT
The following illustration shows serial cable CAB-V35MC (part number 72-0802-01), which is used in the Cisco 4000 series systems. This cable has a male DB-60 connector on the Cisco end and a male Winchester connector on the network end.
Figure 19-38: CAB-V35MC
The following illustration shows serial cable CAB-V35MT (part number 72-0791-01), which is used in the following systems the Cisco 7000 family, Cisco 4000 series, Cisco 3600 series, Cisco 2500 series, Cisco 1600 series, Cisco access servers, and AccessPro PC cards. This cable has a male DB-60 connector on the Cisco end and a male Winchester connector on the network end.
Figure 19-39: CAB-V35MT
The following illustration shows serial cable CAB-V35MTS (part number 72-0816-01), which is a generic V.35 DTE translation cable and is used in the Cisco 1001. This cable has a male shielded Winchester connector on both ends.
Figure 19-40: CAB-V35MTS
The following illustration shows serial cable CAB-X21FC (part number 72-0790-01), which is used in the following systems the Cisco 7000 family, Cisco 4000 series, Cisco 3600 series, Cisco 2500 series, Cisco 1600 series, Cisco access servers, and AccessPro PC cards. This cable has a male DB-60 connector on the Cisco end and a female DB-15 connector on the network end.
Figure 19-41: CAB-X21FC
The following illustration shows serial cable CAB-X21MT (part number 72-0789-01), which is used in the following systems the Cisco 7000 family, Cisco 4000 series, Cisco 3600 series, Cisco 2500 series, Cisco 1600 series, Cisco access servers, and AccessPro PC cards. This cable has a male DB-60 connector on the Cisco end and a male DB-15 connector on the network end.
Figure 19-42: CAB-X21MT
